FrameStar® 96 Well Skirted PCR Plate

96 well skirted plates designed for use on standard thermal cyclers. Low profile wells, recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.

  • PP wells, PC frame; cut corner H1
  • <100µl working volume, 200µl total well capacity
  • Available barcoded on request
  • Ultra-low DNA binding option available

Jump To:

Details | Specifications | Compatibility | Order Info | Resources

Want to request a quote, free samples, or to contact an expert?

Place a Request
BUY ONLINE*

*Online availability to US only

Product Details

Key Features

Quality
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Stackable
Wells
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
  • Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
  • Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame

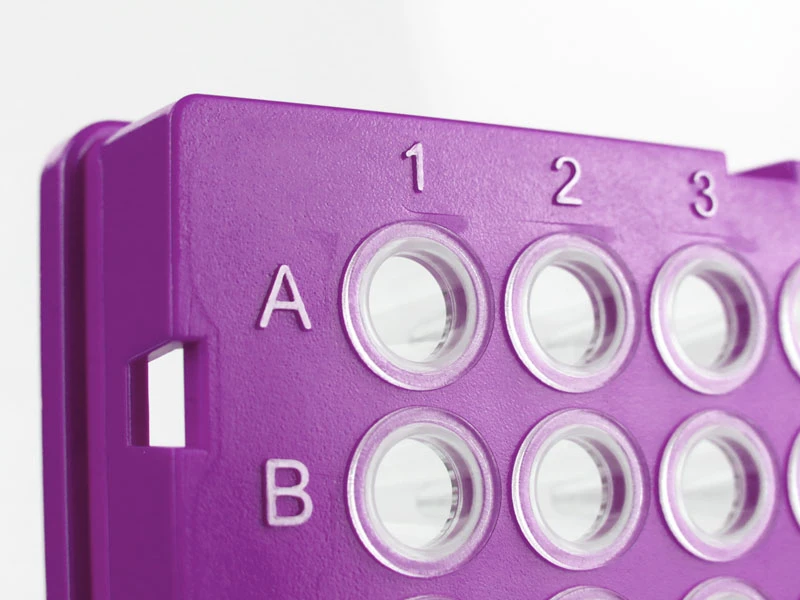

  • Alphanumeric grid reference to aid well and sample identification
Use
  • Recommended for low volume PCR
  • Ideal for use with robotic systems
  • Compatible with standard multichannel pipettes
Options
  • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
  • Also available with a black frame and with a clear frame for the white well variety, for optimum signal-to-noise ratio when using fluorescent based assays
  • Also available as a black frame with black wells for non-PCR fluorescent applications
  • Extra rigid skirt option (4ti-0960/RIG) for use with Perkin-Elmer®Sciclone, Beckman, Hamilton, and other automation systems: eliminates the robotic grip picking up more than one plate at a time
  • Ethylene oxide treated option available (4ti-OX960C/SBC) for forensic use; learn more about our ethylene oxide treated range
  • Ultra-low DNA binding option available (4ti-LB0960/RIG) for sensitive applications with ultra-low DNA input and for maximum DNA recovery after low temperature storage and high temperature incubation; learn more about our low binding range
  • Available barcoded upon request; learn more about our barcoding options
  • Clear Polystyrene Lid (4ti-0287) available for 4ti-0960/RIG

Low DNA Binding Plates

  • Azenta Life Sciences offer low binding products, recommended to support sensitive techniques such as qPCR and Next Generation Sequencing (NGS), as well as storage of samples.
  • Manufactured using selected low-bind polymers, DNA loss is minimized during incubation and sample transfer, making it the ideal solution for use in applications with low DNA input.
  • Low binding feature results from selected low-bind polymers, no coating is used to achieve the binding characteristics. No contamination or modification of the samples.
  • Tested under a broad temperature range. Maximum DNA recovery after low temperature storage and high temperature incubations.
  • No detectable DNA loss during incubation steps and sample transfer in NGS sample prep and library construction. Ideally suited for sensitive applications with ultra-low nucleic acid input.
Specifications
  FrameStar 96 Well Skirted PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 16.10 ± 0.25mm
Well depth 15.10 ± 0.10mm
Well diameter 5.50 ± 0.10mm
Total well capacity 0.2ml (200µl)
Working volume <0.1ml (100µl)
Distance to center of A1 from top edge 11.24 ± 0.25mm
Distance to center of A1 from left edge 14.38 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm

Product Documentation



FrameStar 96 Well Skirted PCR Plate Technical Drawing

FrameStar 96 Well Skirted PCR Plate, Extra Rigid Technical Drawing

Compatibility
AGILENT/STRATAGENE
  • Thermal Cyclers (96 well block): Robocycler Gradient
  • qPCR Cyclers (96 well block): AriaMx
ANALYTIK JENA/BIOMETRA
  • Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler2 (SP, SPR)
BIO-RAD
  • Thermal Cyclers (96 well block): C1000 Touch | S1000
  • qPCR Cyclers (96 well block): CFX96 Touch | CFX 96 Touch Deep Well | CFX connect
BIO-RAD MJ RESEARCH
  • Thermal Cyclers (96 well block): PCT100™/200™/220™/221™/225™/240™
  • qPCR Cyclers (96 well block): Chromo4™ | Opticon2™
EPPENDORF
  • Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
  • qPCR Cyclers (96 well block): MasterCycler™ ep realplex
GE HEALTHCARE/AMERSHAM
  • Sequencers (96 well block): MegaBACE™ 500 | MegaBACE™ 1000 mark 2
PEQLAB/VWR
  • Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST
  • Thermal Cyclers (96 well block): Labcycler
TECHNE
  • Thermal Cyclers (96 well block): TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
  • qPCR Cyclers (96 well block): Quantica

For recommended plate options depending on manufacturer, block type, and instrument please refer to the Azenta Life Sciences Plate Instrument Compatibility Table.

Ordering Information

Part Numbers

Use these part numbers to request a quote, free samples, or to contact an expert::

FrameStar 96 Well Skirted PCR Plate
Low profile, 0.1ml polypropylene wells, polycarbonate frame, cut corner H1; working volume: <100µl, total well capacity: 200µl

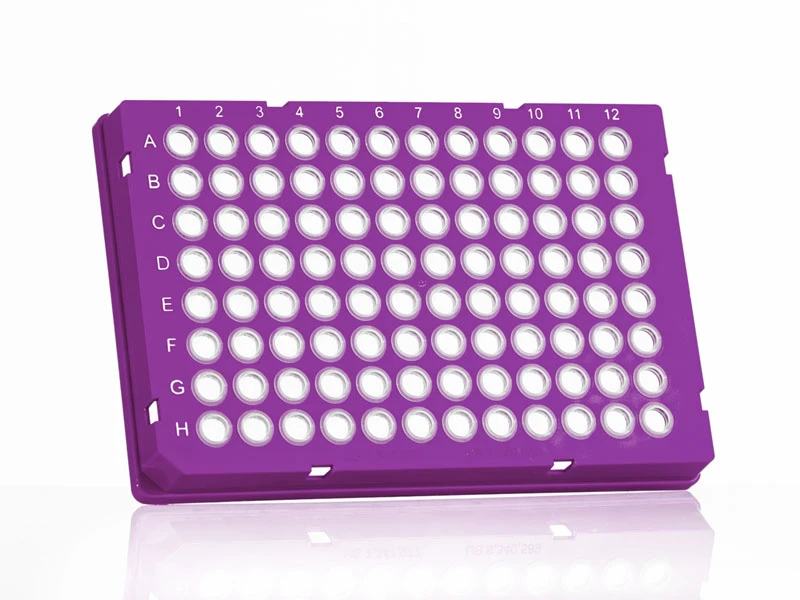

4ti-0960 clear wells, purple frame; 50 plates

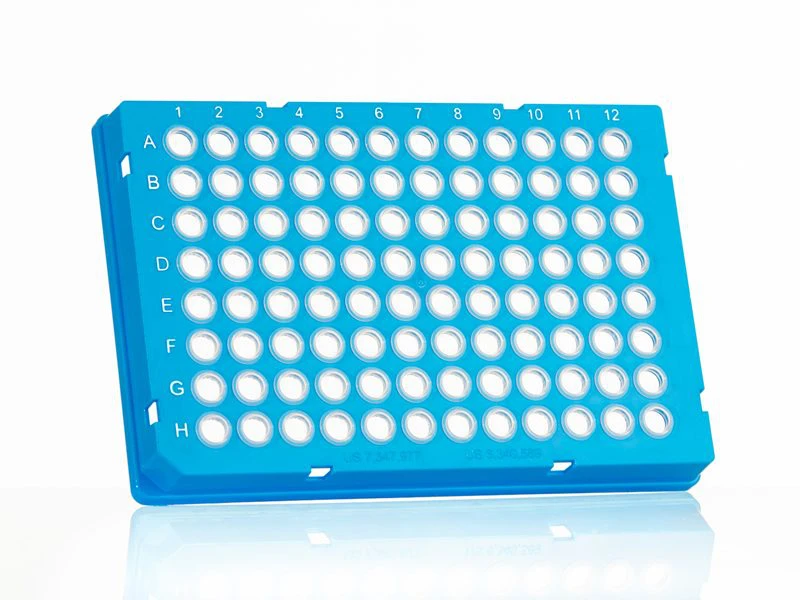

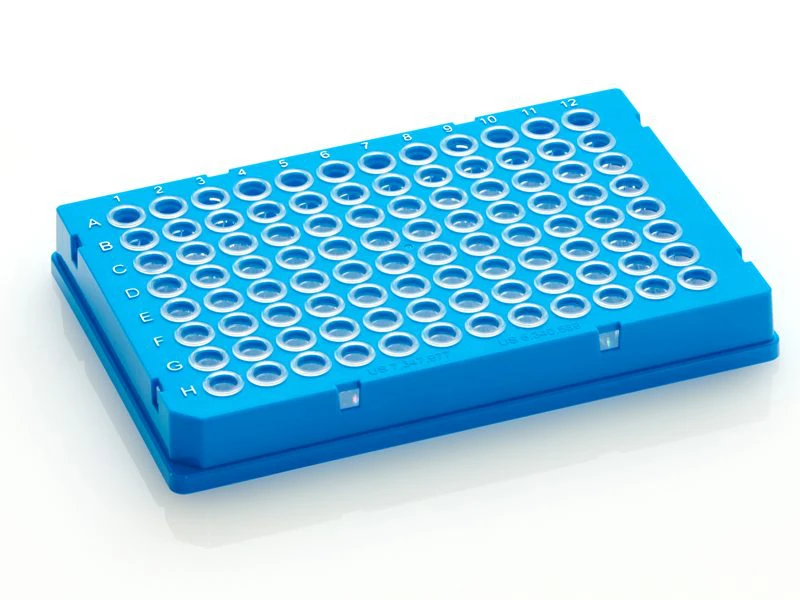

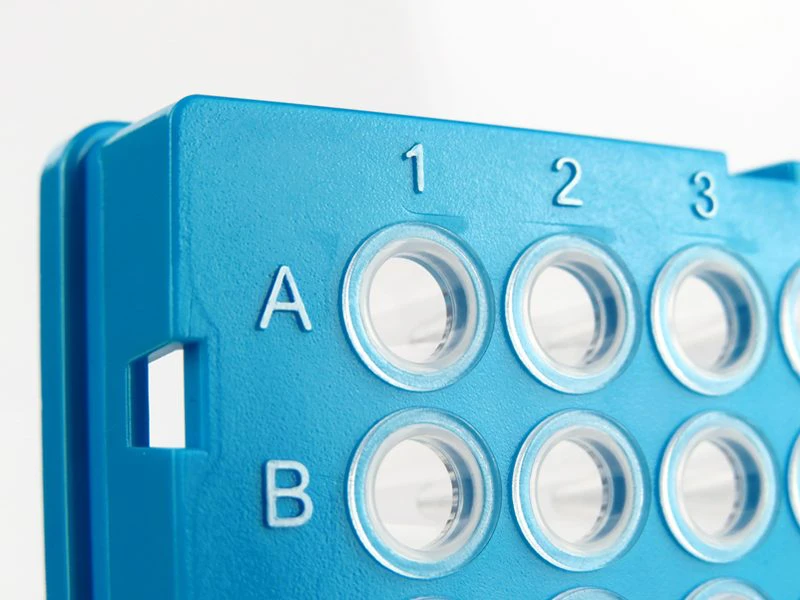

4ti-0960/B clear wells, blue frame; 50 plates

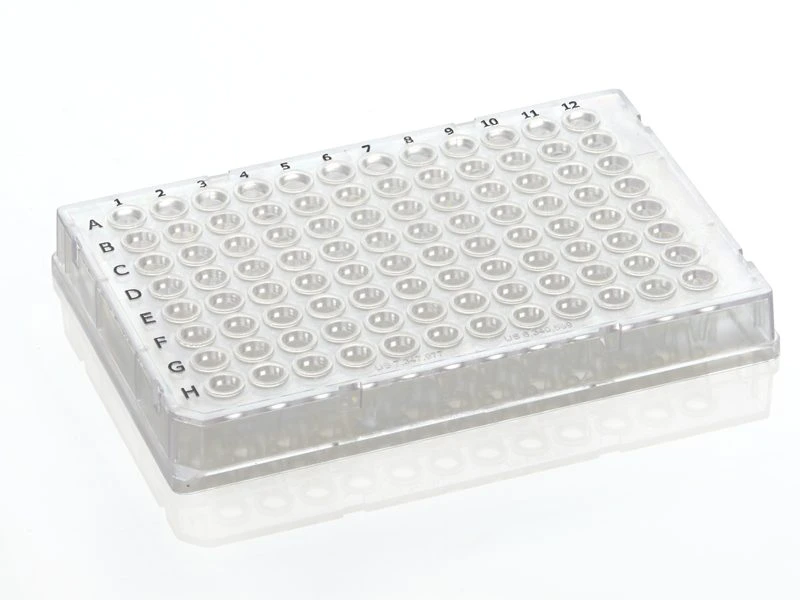

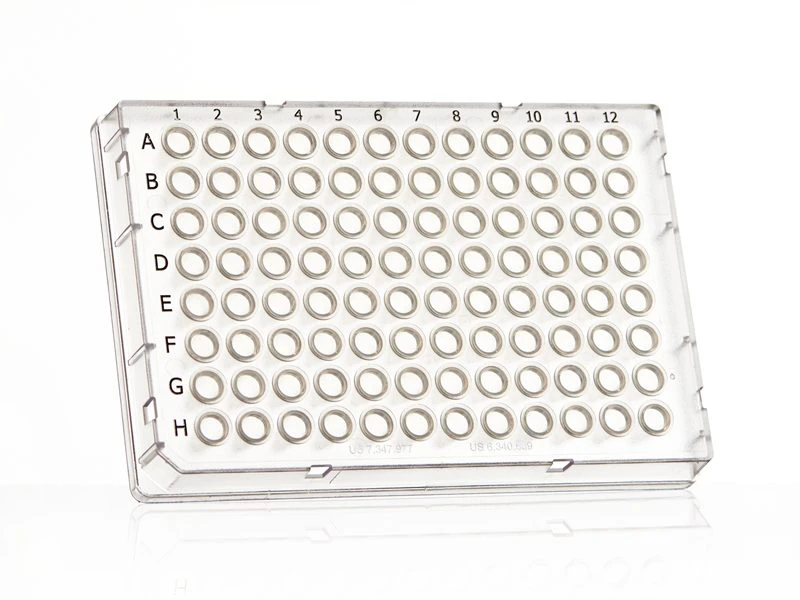

4ti-0960/C clear wells, clear frame; 50 plates; Buy Online*

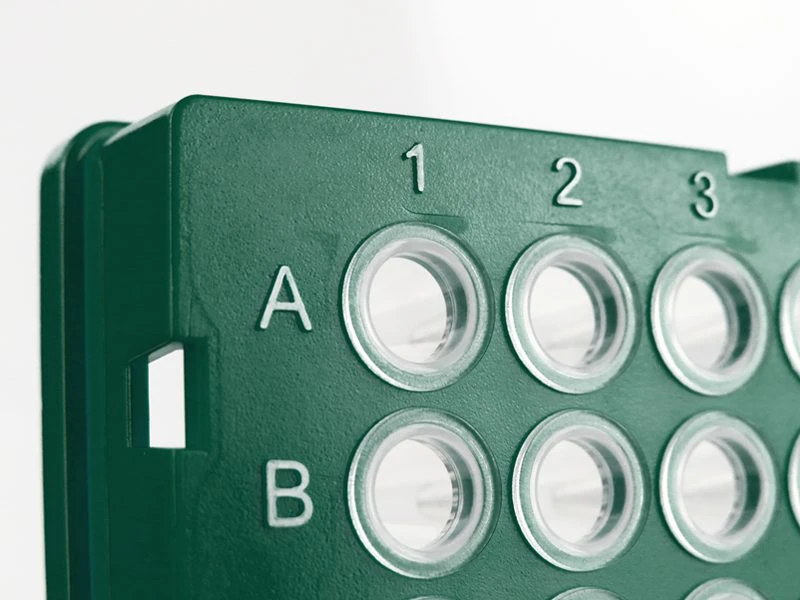

4ti-0960/G clear wells, green frame; 50 plates

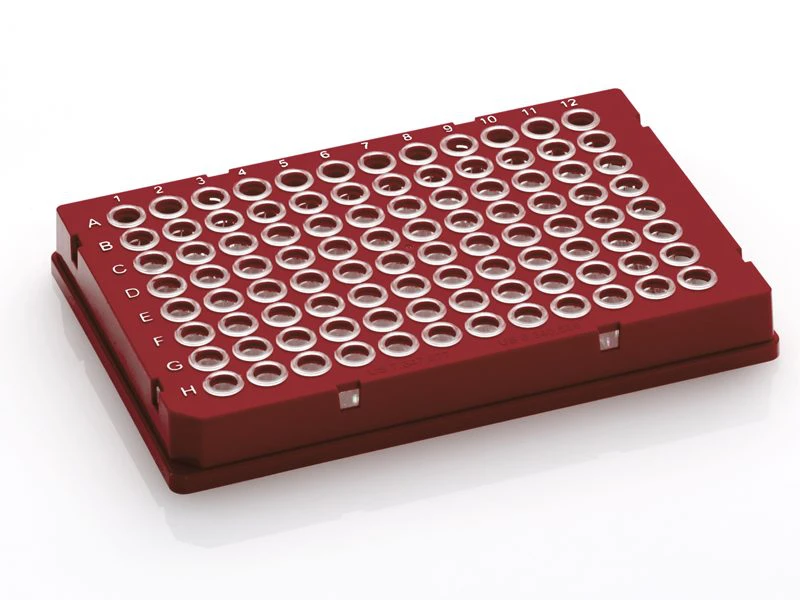

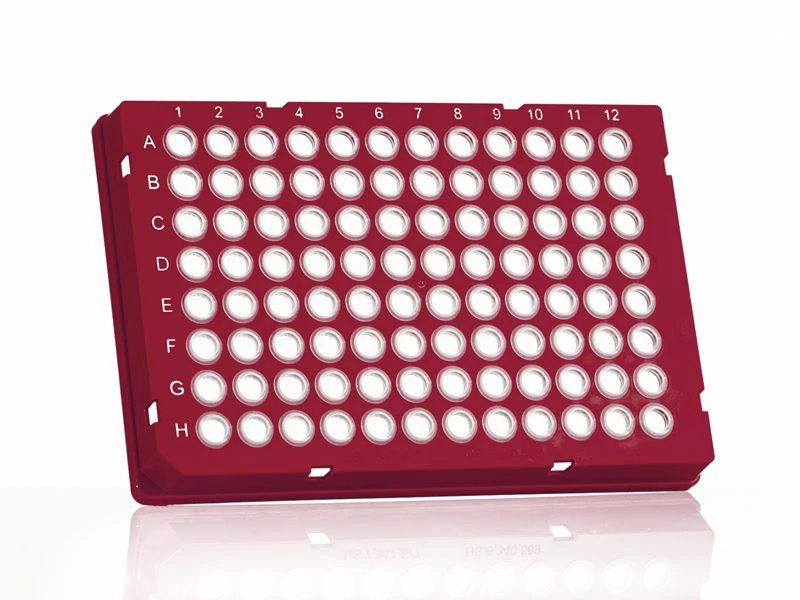

4ti-0960/R clear wells, red frame; 50 plates

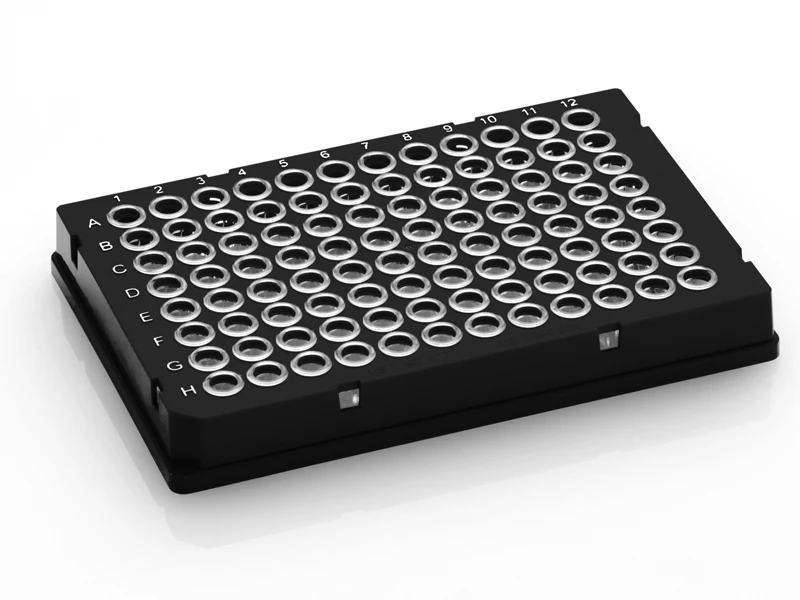

4ti-0960/X clear wells, black frame; 50 plates

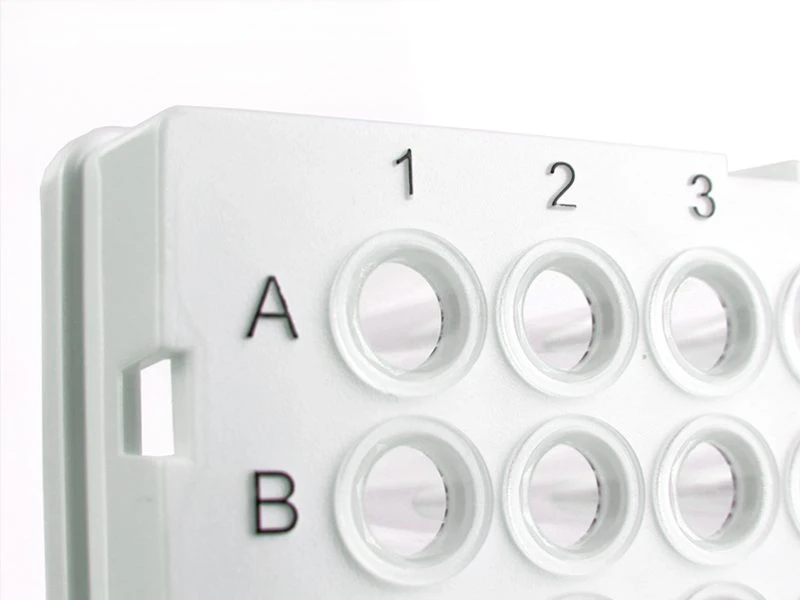

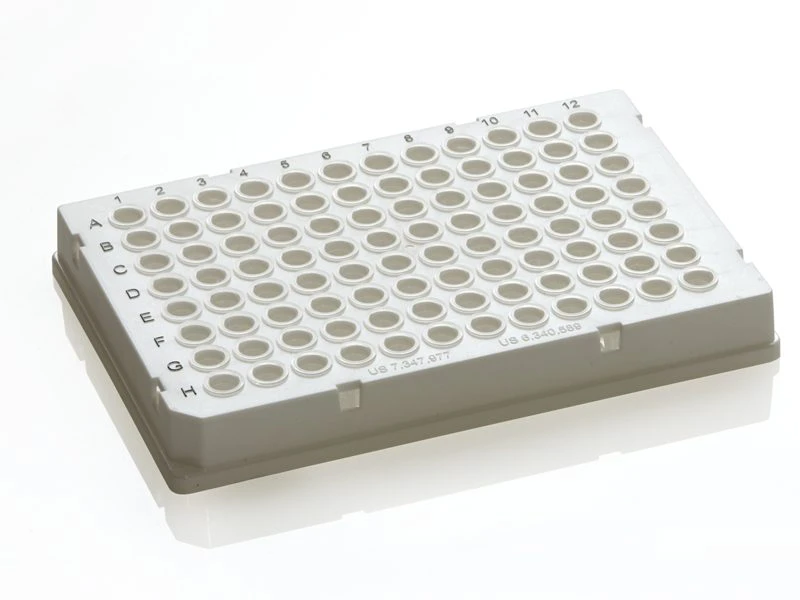

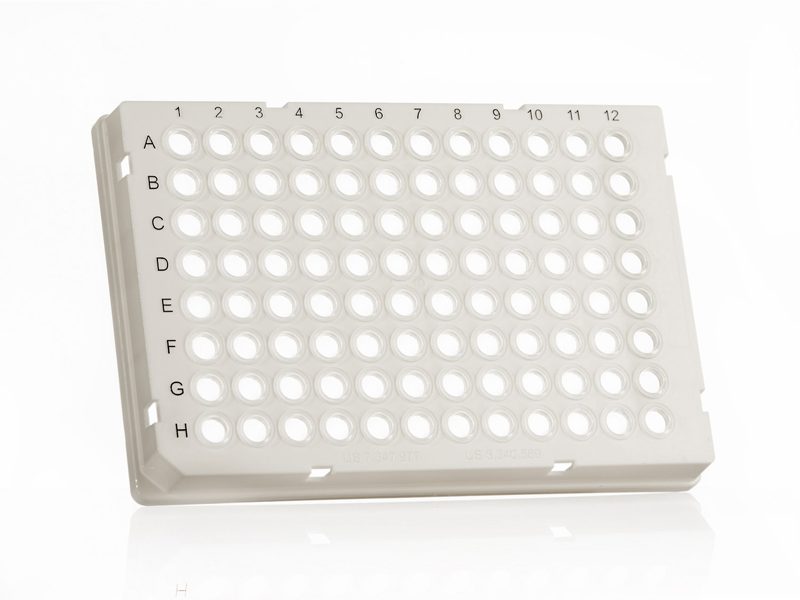

4ti-0960/W clear wells, white frame; 50 plates; Buy Online*

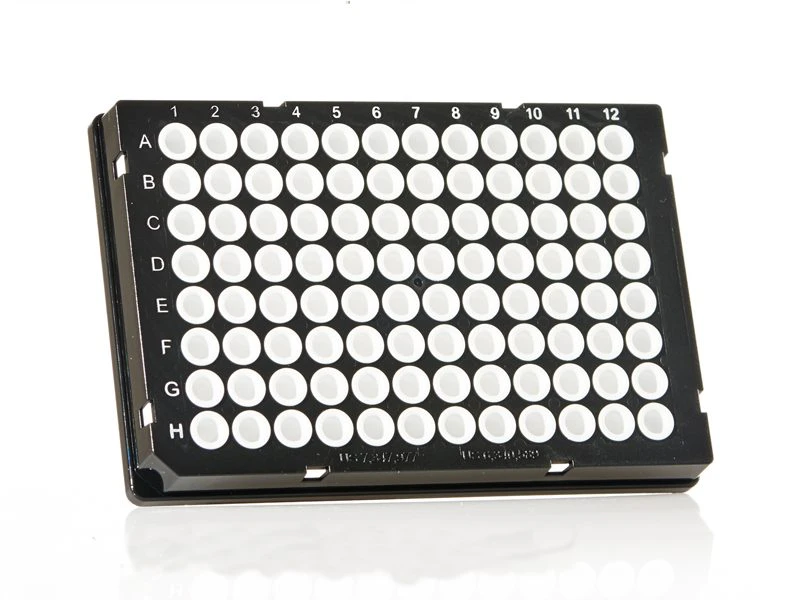

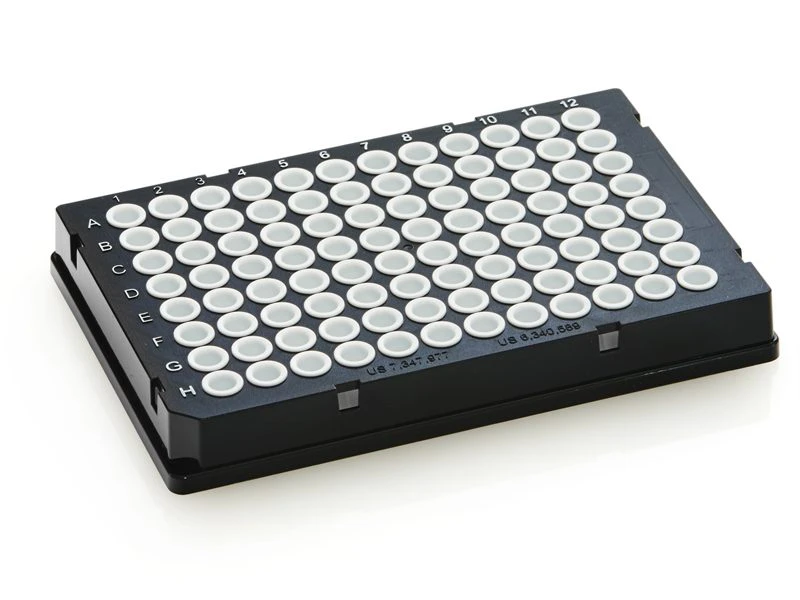

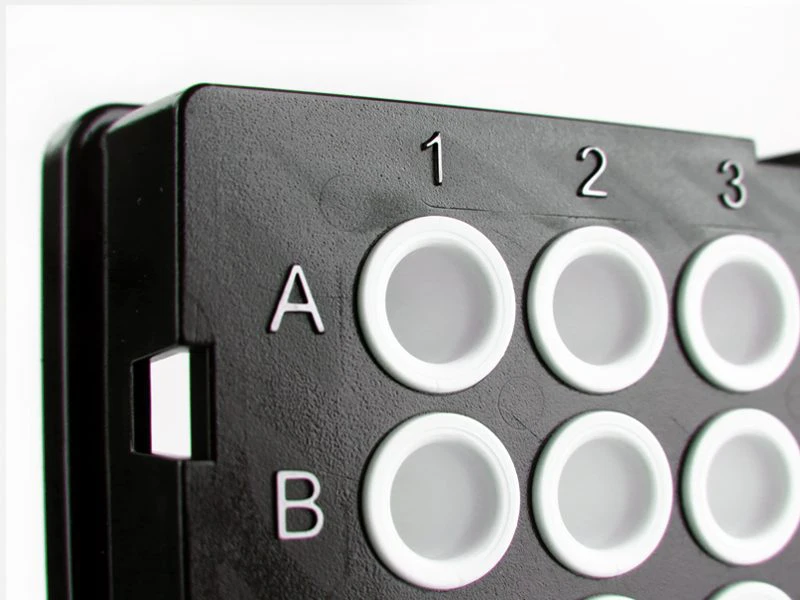

4ti-0961 white wells, black frame; 50 plates

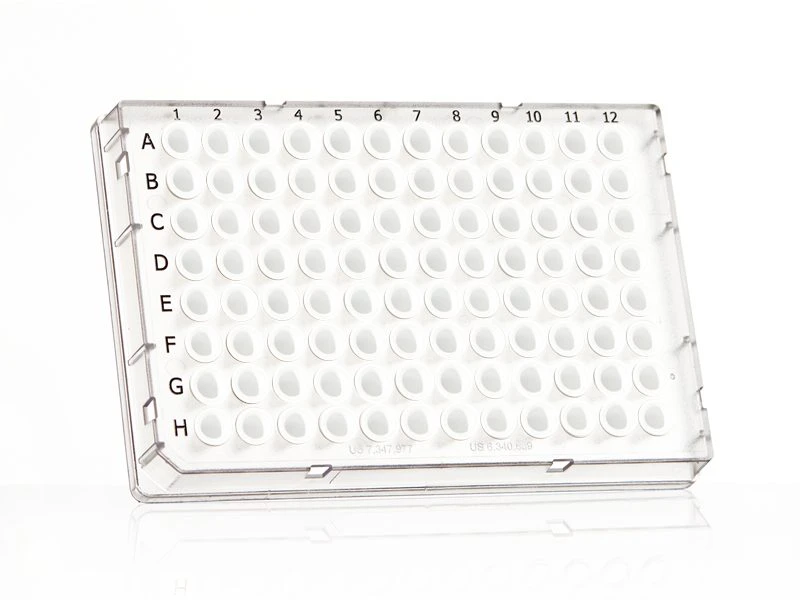

4ti-0961/C white wells, clear frame; 50 plates

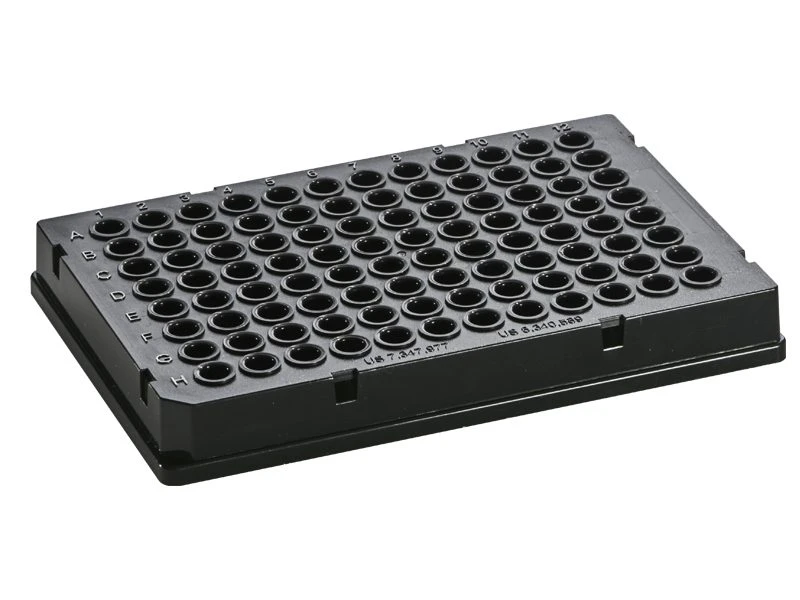

4ti-0966 black wells, black frame; 50 plates
4ti-OX960C/SBC 4ti-0960/C for forensic use, ethylene oxide treated and single barcoded; 20 plates

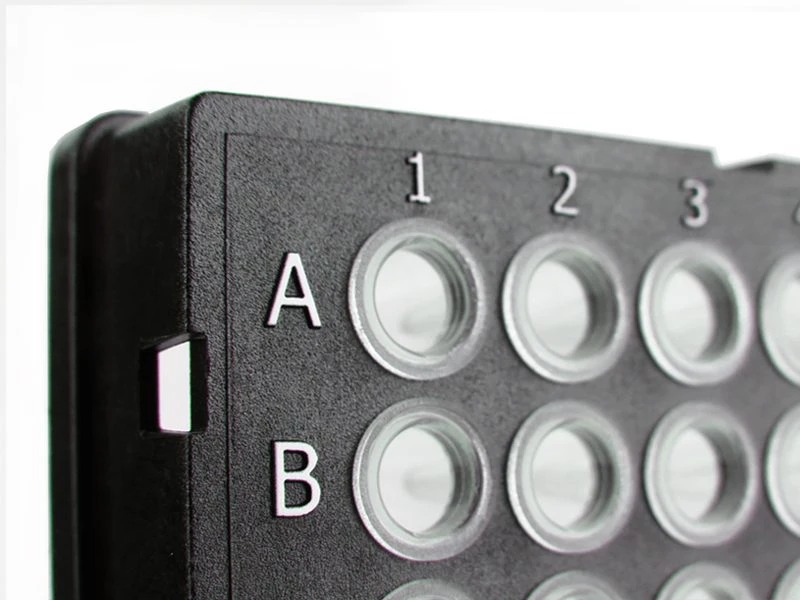

4ti-0960/RIG 4ti-0960/X with extra rigid skirt; 50 plates
4ti-LB0960/RIG 4ti-0960/RIG, with low DNA binding properties; 50 plates
Lids
4ti-0287 FrameStar 96 NGS Lid (4ti-0287), for use with 4ti-0960/RIG; 50 lids

*Online availability to US only
